气动精密虎钳

★强而有力材质~虎钳钳身使用高抗张拉力球状石墨化铸铁(FCD600~60kgs/mm2)(80,000psi)抗张力强，不易变形。

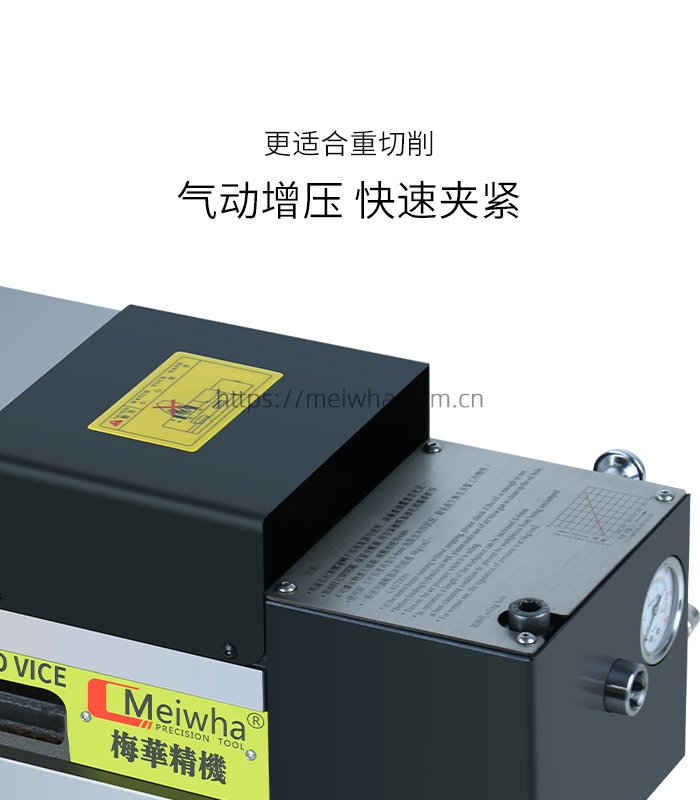

★夹持力可从0-6000kg可由调压器自由调整，开速度需1.5秒。

★夹持安全距离可达6mm自动寻找最高空压源:当铜铝类产品轻加工或铸铁类初胚重切削时，用调整器调整在所需压力，也不会因空压源在低点而失灵，且有自动保压及稳压之功能，确保工件之夹持。

★可与CNC系统信号对接，控制气动油虎钳自松夹紧，实现全自动装。

★When copper and aluminum products are light processing or raw material of cast iron is heavy cutting. Set at the desired pressure with theregulator, will not resul in low air pressure source and loss of pressure, and the regulator can fill and fix the pressure function automatically,toensure the clamp of the workpiece.

★Just a manual switch control vise switch, the switching speed ofjust 1.5 seconds, holding a safe distance for 6mm, during operation to preventinjured. When the clamp can also be done with a special automated unmanned production system design (can beused with electrically controlecvalve or via the controller machine’s operation).

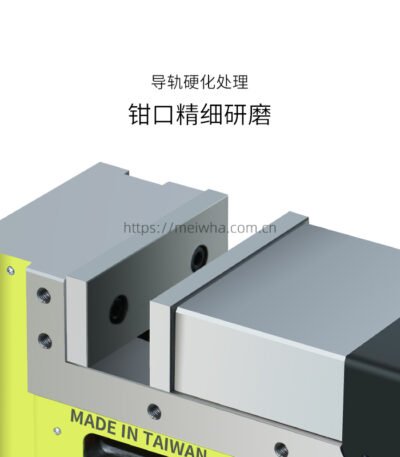

★Vise body material with high ductility of spherical graphite cast iron (FcD600) integral product design, vise both sides ofthe slide hardened heat(HRC42 °), ensure high precision and high wear resistance, high tensile strength.
